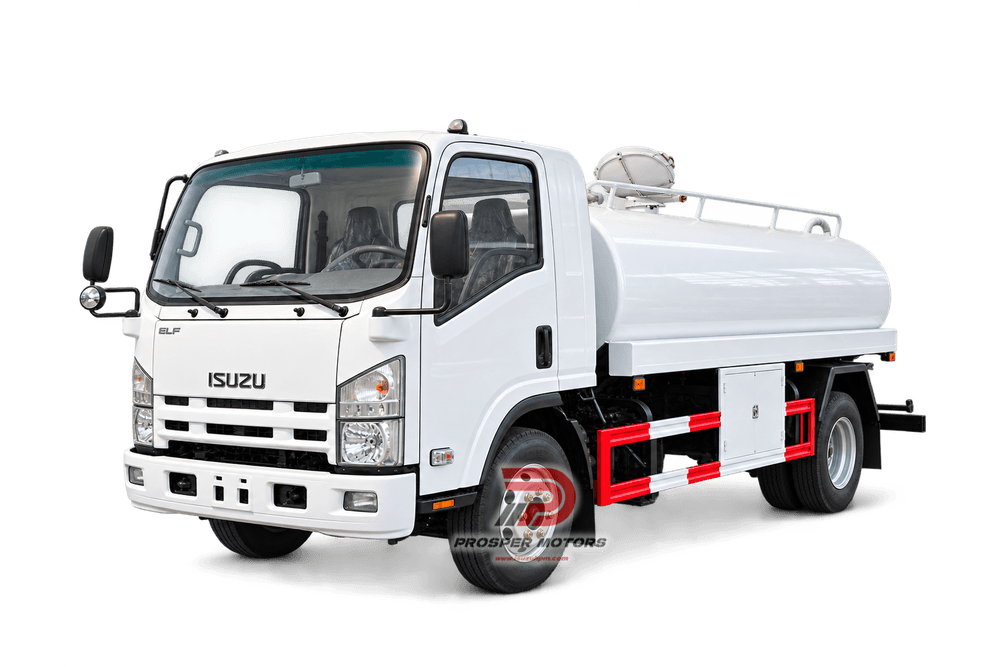

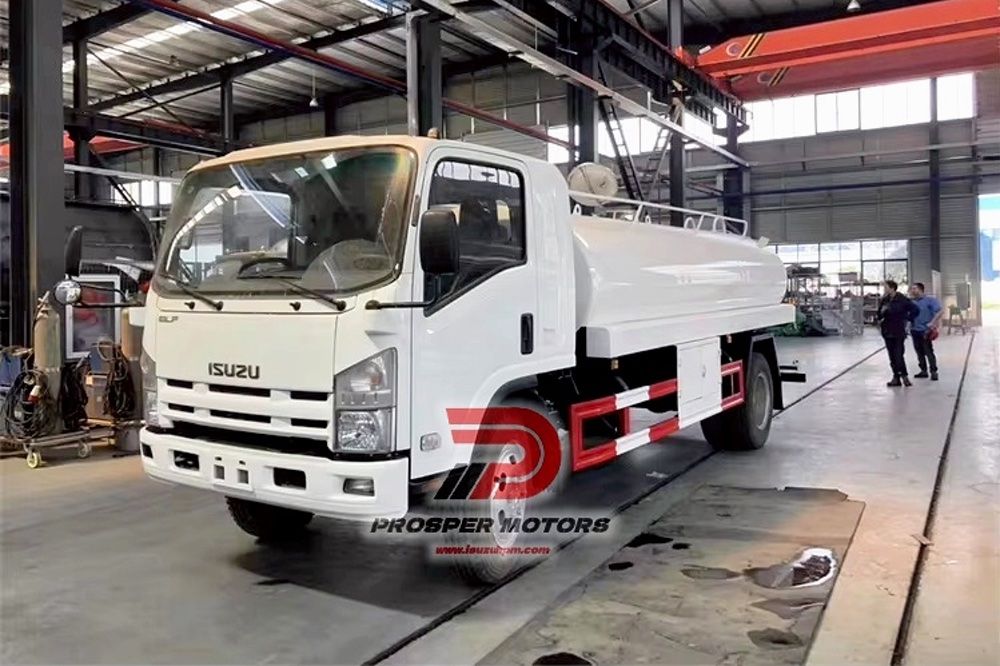

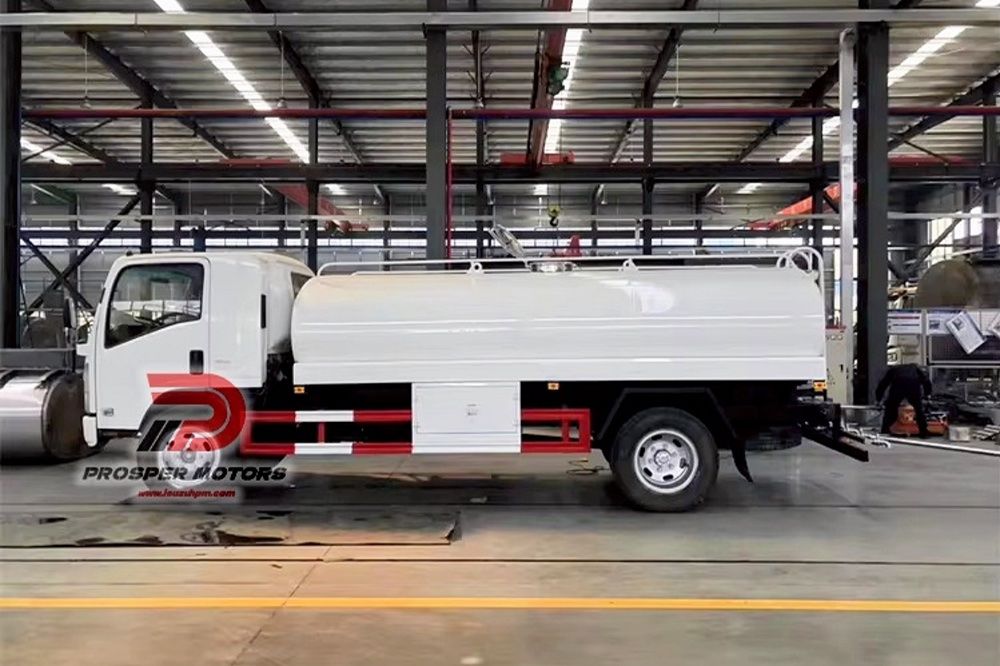

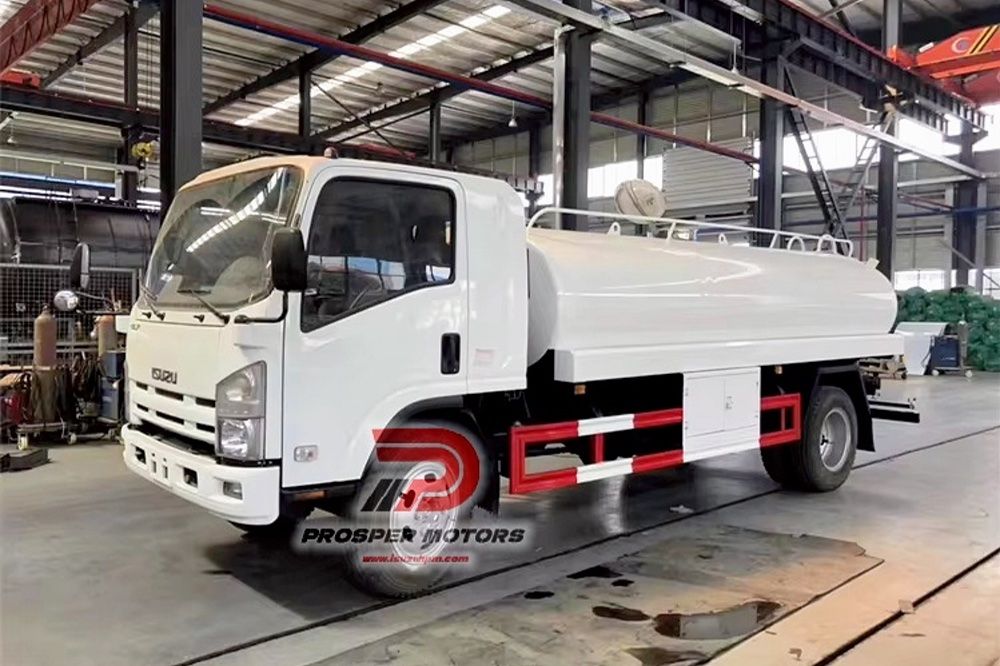

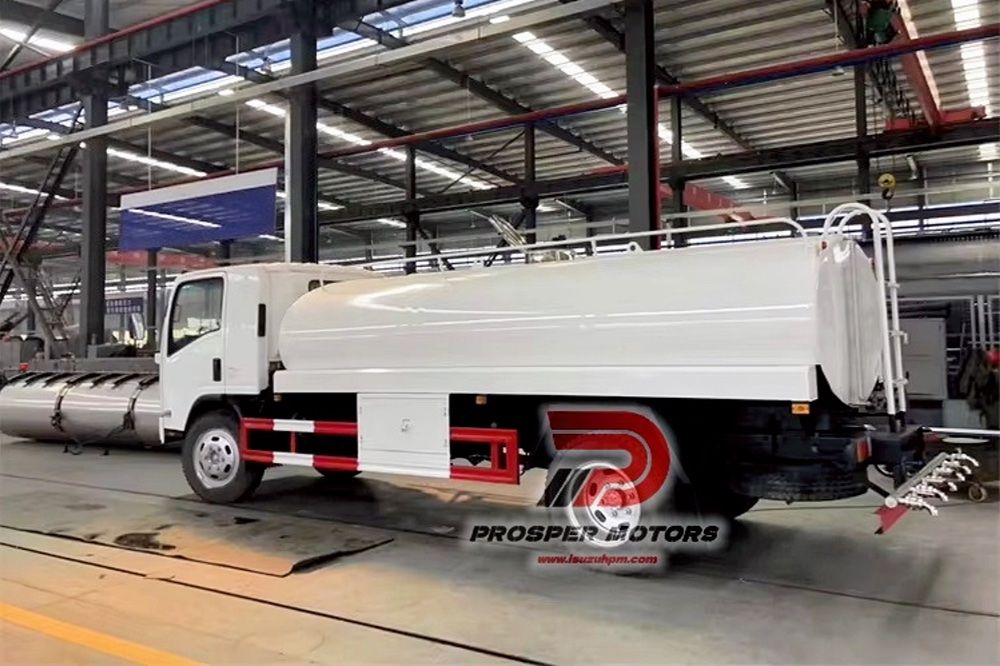

ISUZU FRR 4X2 Stainless Steel 5000L Milk Tank Truck
This ISUZU FRR milk tank truck is a reliable solution for fresh‑milk transportation, widely recognized by dairy farms and milk‑processing enterprises worldwide. Built on the durable ISUZU FRR 4x2 chassis with a 5000L 304 stainless‑steel tank, it balances stable driving performance and food‑grade storage capacity, meeting strict hygiene requirements for liquid food delivery.
GVW(kg)
10500
Power(PS/Rpm)
190@2600
Tank Volume(L)
5000
Transmission
6 Forward 1 reverse
Wheelbase-WB(mm)
3360
SHARE :
TECHNICAL ADVANTAGE
Premium Food‑Grade Tank Structure

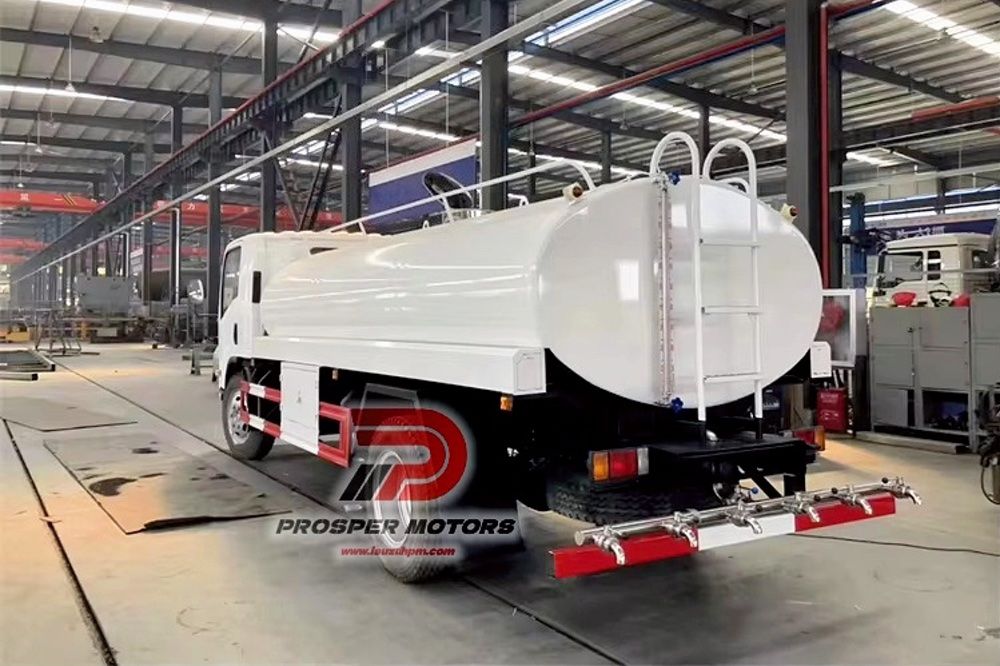

The milk transport truck adopts 304 stainless‑steel material with 4mm wall thickness, which is corrosion‑resistant and easy to clean. It effectively avoids milk contamination during transit. Equipped with a built‑in liquid level gauge and safety access ladder, operators can conveniently check liquid volume and conduct routine tank maintenance.
Robust Chassis & Power Performance
Isuzu milk tanker powered by a 190HP engine with 4×2 drive and 6‑speed gearbox, this vehicle delivers steady power for rural and urban milk collection routes. ensures good maneuverability on narrow farm roads.
Practical Application Scenarios
Dairy delivery truck is ideal for daily raw‑milk collection from small‑to‑medium dairy farms and short‑distance delivery to processing plants. The sealed tank design prevents spillage and keeps milk fresh throughout the whole transportation process. Custom tank volumes can be offered to match different business demands.
-

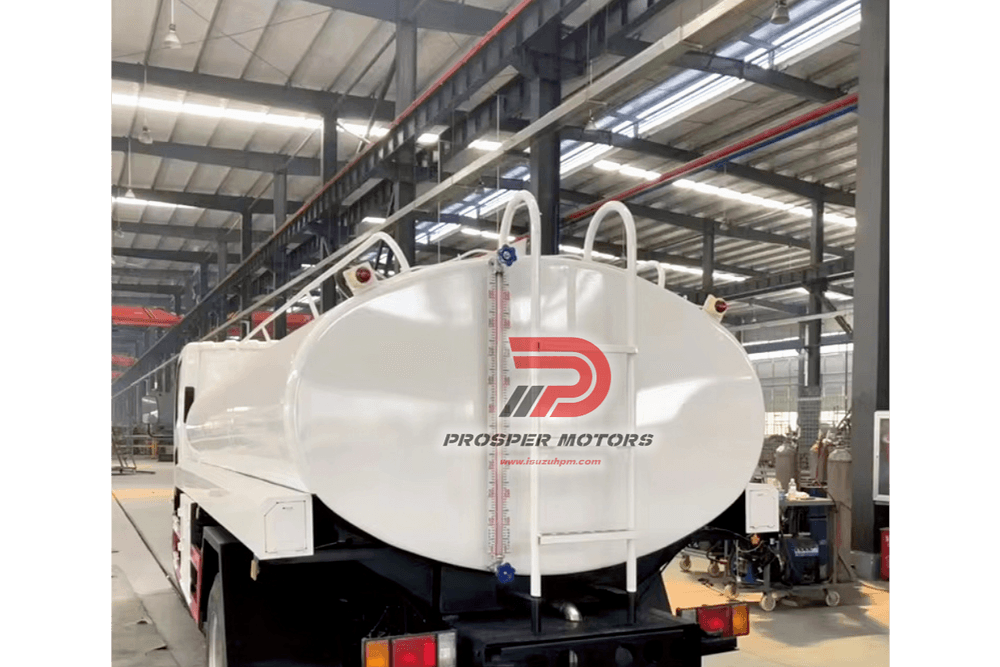

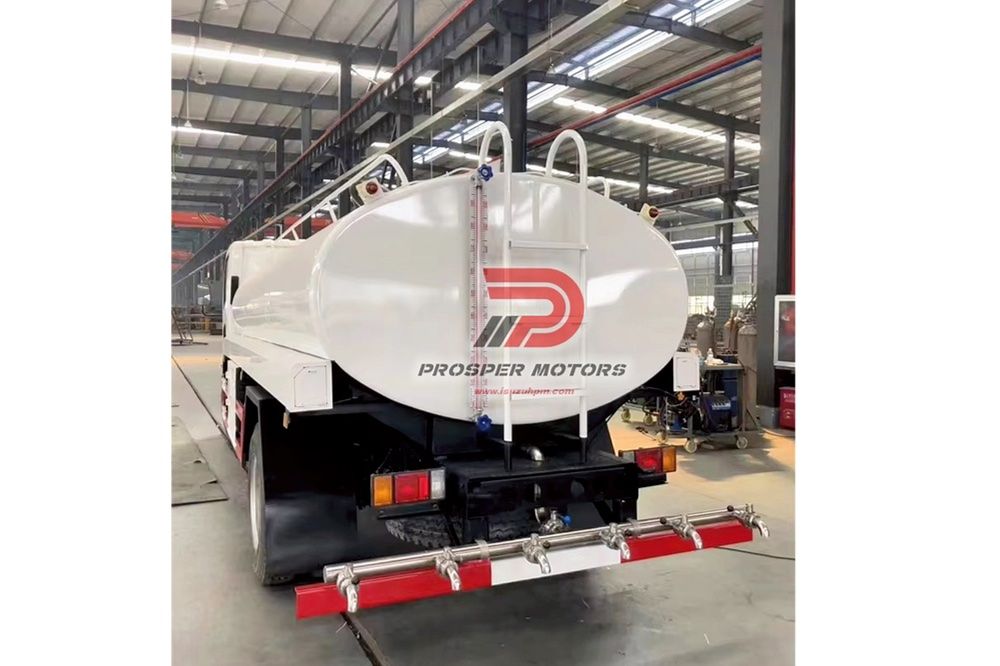

Liquid‑Level Gauge Design
The milk tank is fitted with a vertical built‑in liquid‑level gauge mounted on the tank rear side. It clearly displays real‑time liquid volume for operators to monitor milk storage at a glance.This practical accessory helps avoid over‑filling and supports routine tank inspection and maintenance. Paired with the stainless‑steel tank, it delivers stable, user‑friendly performance for daily milk transportation operations. -

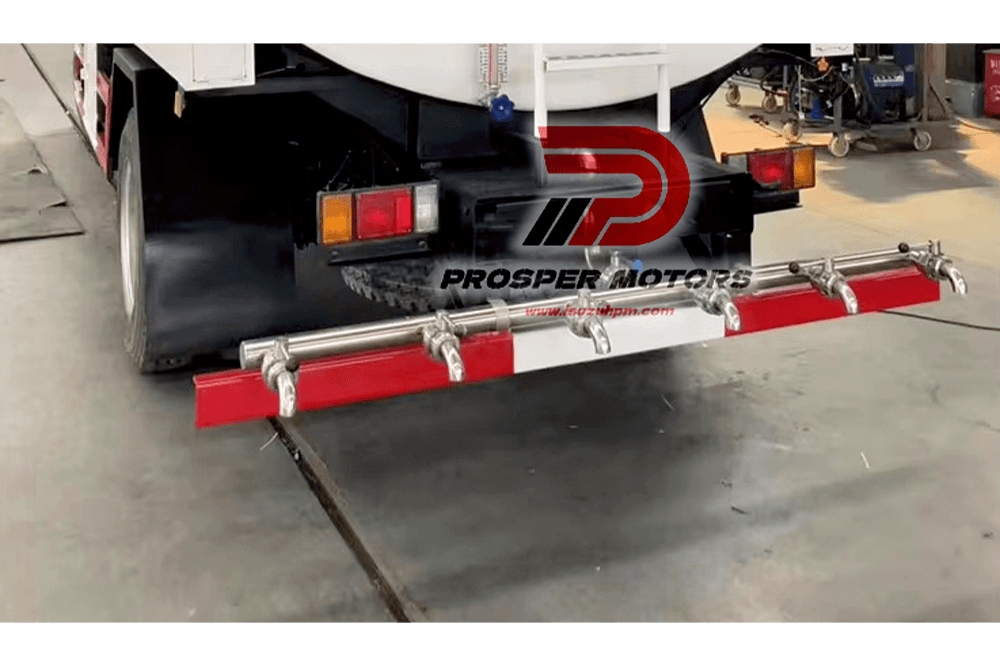

Multi‑Outlet Discharge
The truck is equipped with a row of stainless‑steel discharge nozzles mounted under the rear of the tank. Multiple independent outlets allow flexible milk discharging for different pipelines and receiving equipment.Each nozzle features a solid shut‑off valve for precise flow control. The corrosion‑resistant stainless‑steel construction fits food‑grade delivery needs, enabling quick and safe unloading operations on‑site.
ISUZU FRR 4X2 Stainless Steel 5000L Milk Tank Truck Specifications
Cab seats
2+1
Drive type
4X2
Engine Make
ISUZU
Wheelbase
3360
Engine Model
4HK1
Front Axle
4000Kg
Engine
190HP
Rear Axle
7000Kg
Displacement
5.2L
Transmission
MLD Manual 6 Forward 1 reverse
Emisssion Standard
Euro 3-Euro 6
Number of tire
6+1
Tire Size
235/75R17.5
Overall Size
5995X2100X2350mm
Tank Volume
5000 liters
Key parameters
Built on the reliable ISUZU 700P chassis with 4HK1 5.2L 190HP engine, this milk tank truck adopts 4×2 drive and a 6‑speed manual transmission. It delivers steady power for long‑distance milk delivery.
Boasting a 5000‑liter food‑grade stainless‑steel tank, the vehicle is well‑matched with robust axle load and proper wheelbase. Compliant with Euro 3‑Euro 6 emission standards, it balances great loading capacity, stable running performance and practical operability for dairy transport missions.
