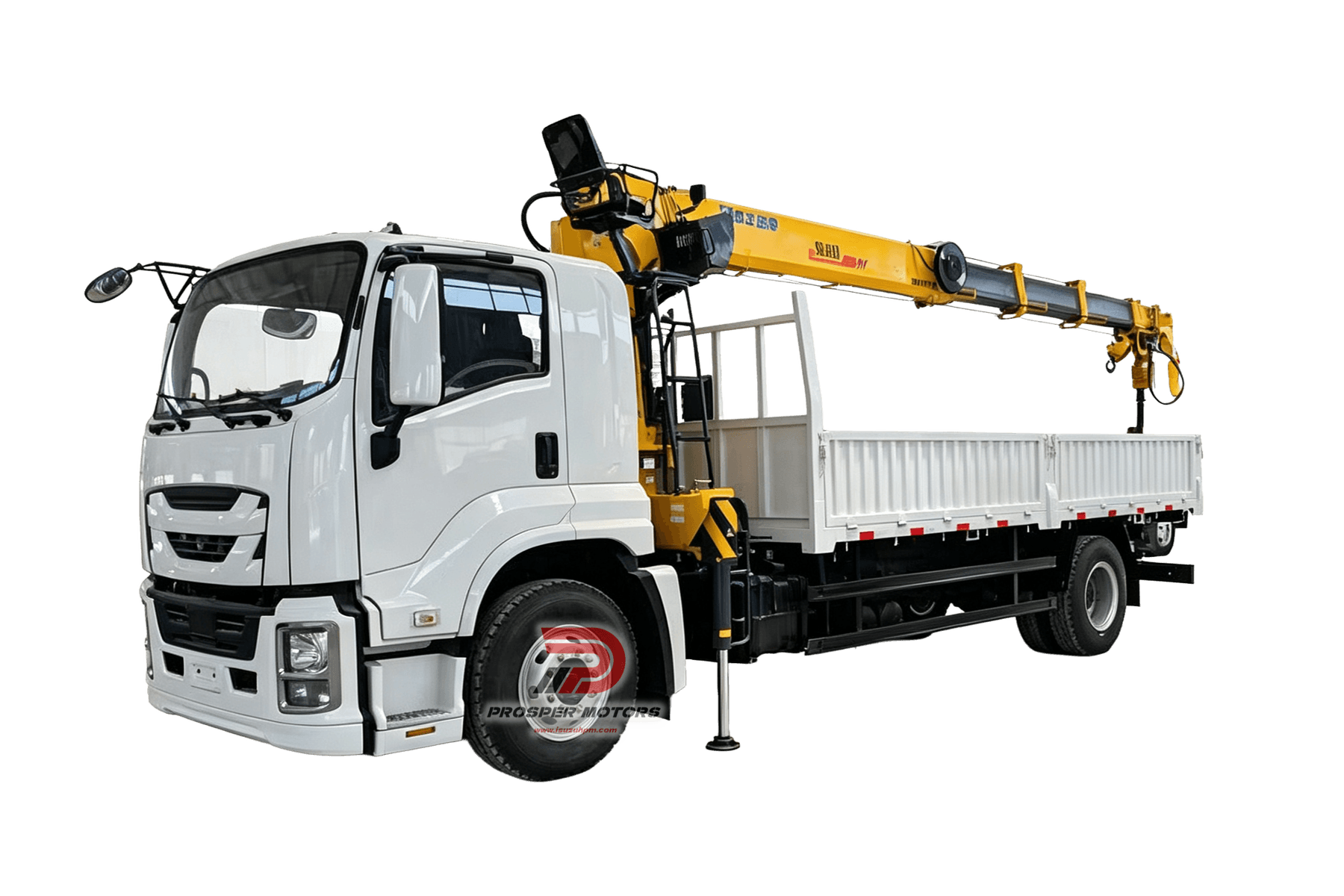

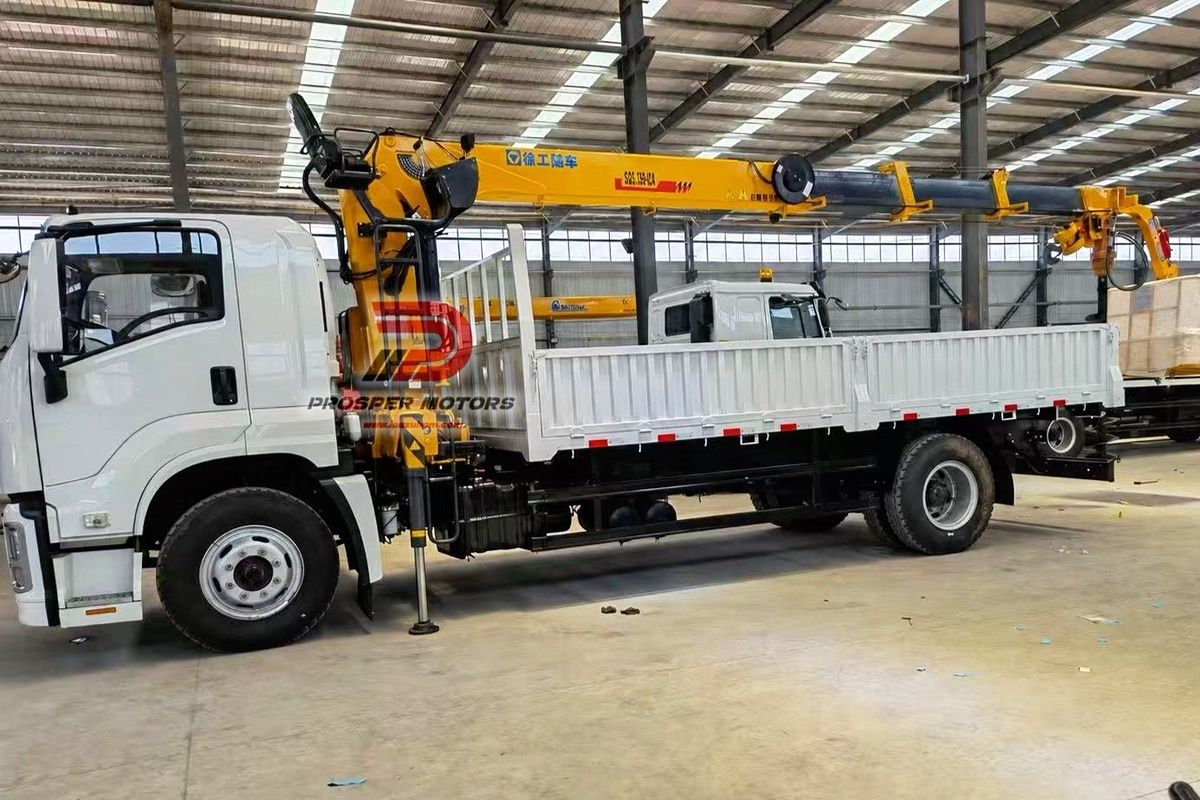

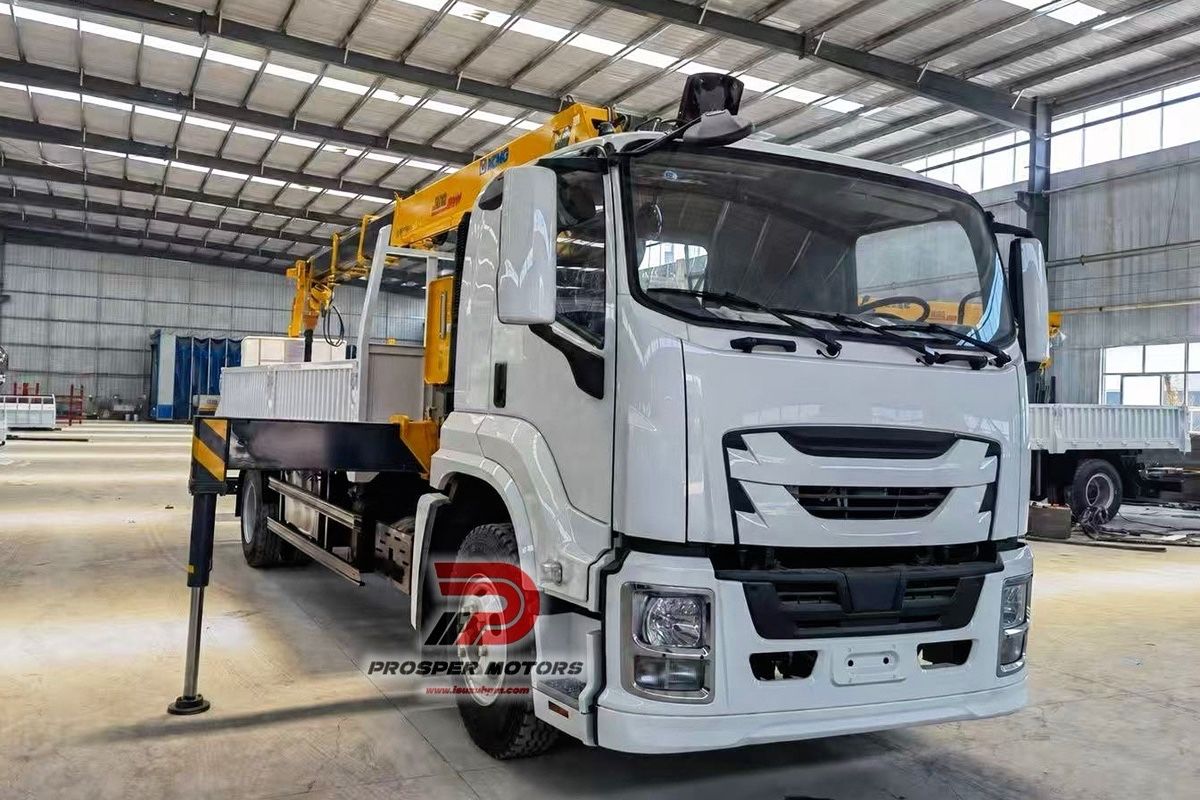

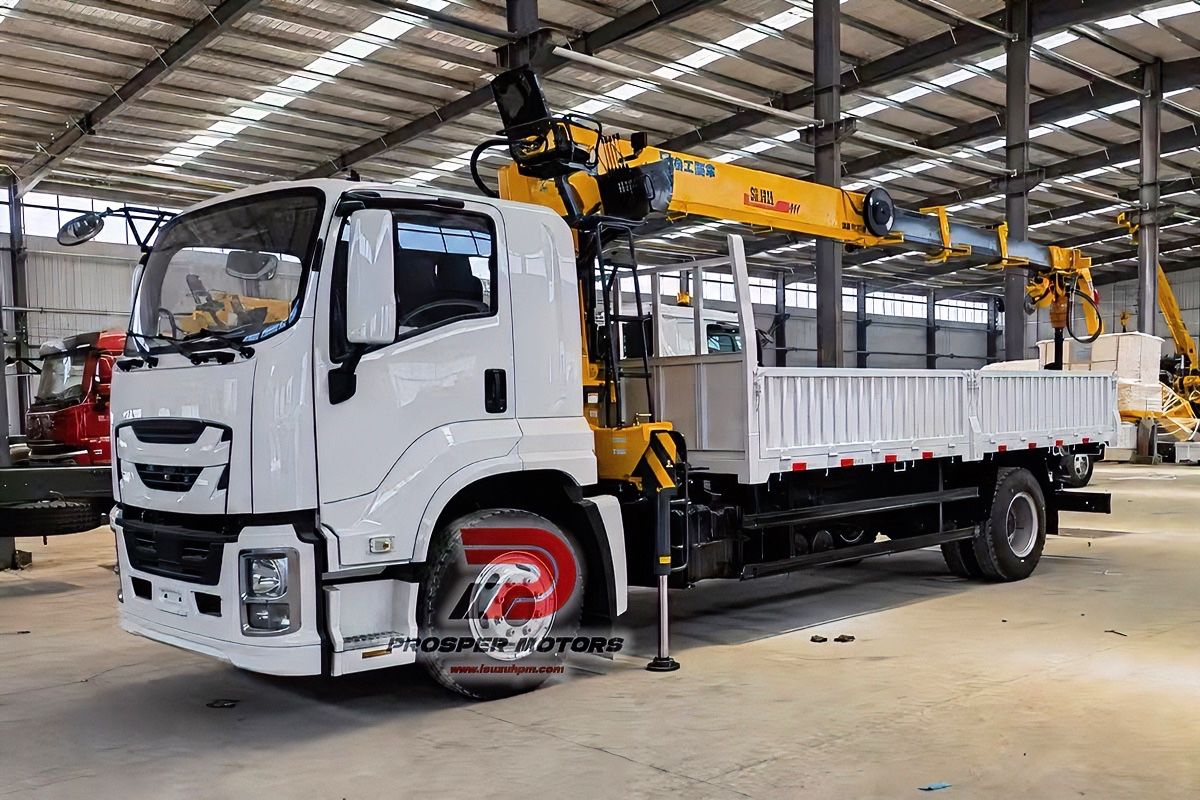

ISUZU QINGLING FTR 4X2 TRUCK MOUNTED CRANE WITH AUGER
This ISUZU 4X2 truck mounted crane built on reliable FTR medium-duty truck chassis integrates lifting, drilling and high-altitude operation functions in one unit. Equipped with premium XCMG straight boom crane, the machine delivers stable lifting performance for construction, power engineering and rural infrastructure projects. The robust hydraulic outriggers ensure safe operation on uneven ground, greatly improving construction adaptability for outdoor worksites. As a versatile mobile crane truck, it eliminates the need to deploy multiple separate machines at job sites.
GVW(kg)
18000
Power(PS/Rpm)
205 @2400
Max.lifting weight(T)
6.3
Transmission
6 Forward, 1 reverse
Wheelbase-WB(Mm)
5550
Drive type
4X2
SHARE :
TECHNICAL ADVANTAGE
●Versatile Attachments for Diverse Construction Tasks
This FTR 4X2 multi-functional boom truck crane comes with interchangeable attachments: auger drill for pole digging and aerial work basket for overhead maintenance. The high-torque spiral drilling tool can bore holes for utility poles, while the working platform provides secure access for overhead wiring installation. Operators can swiftly switch between different tasks, making it an ideal utility service truck for electric power, telecommunications and road construction teams.
●Cost-Effective & Flexible Transportation Performance
User-friendly control system brings precise manipulation for lifting, drilling and aerial tasks. The spacious cargo box retains strong material transport capacity, allowing crews to carry construction tools and raw materials to remote locations. Compared with single-purpose machinery, this ISUZU FTR 4X2 truck mounted crane with auger cuts procurement and transportation costs significantly. Its compact overall dimension enables smooth transit on country roads and narrow construction passages.
-

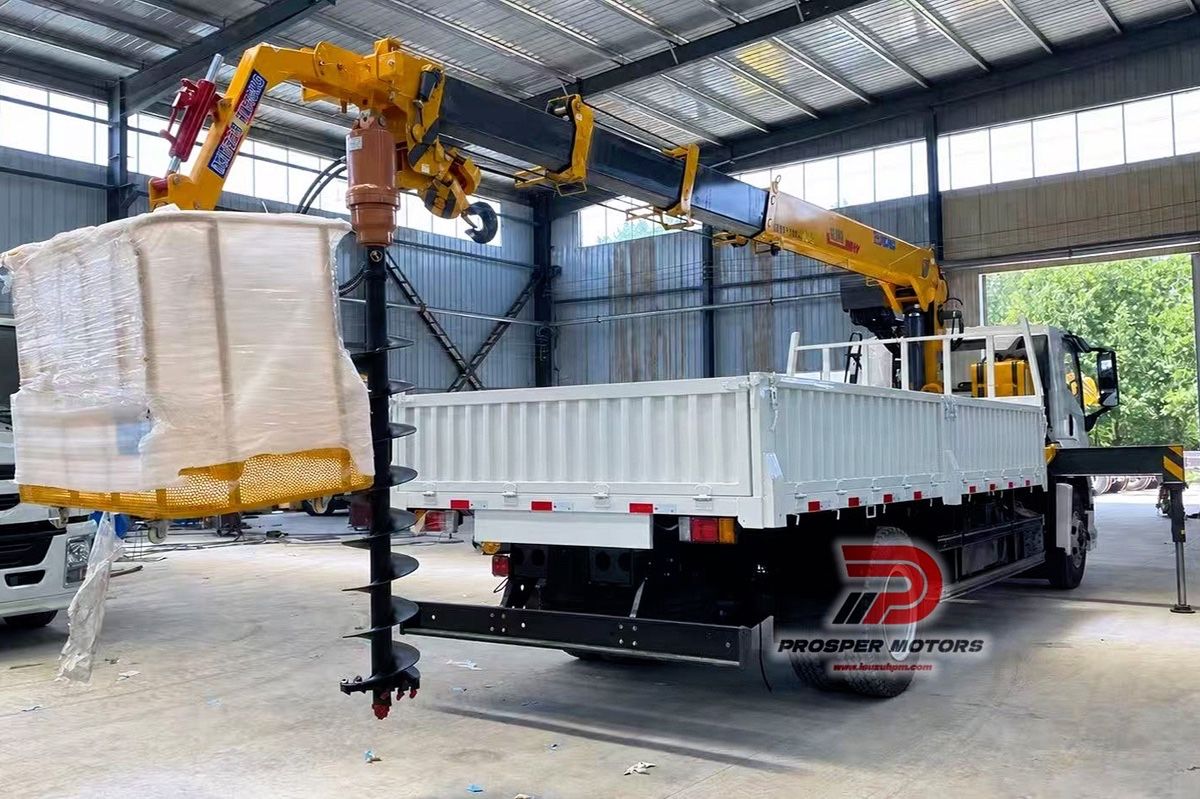

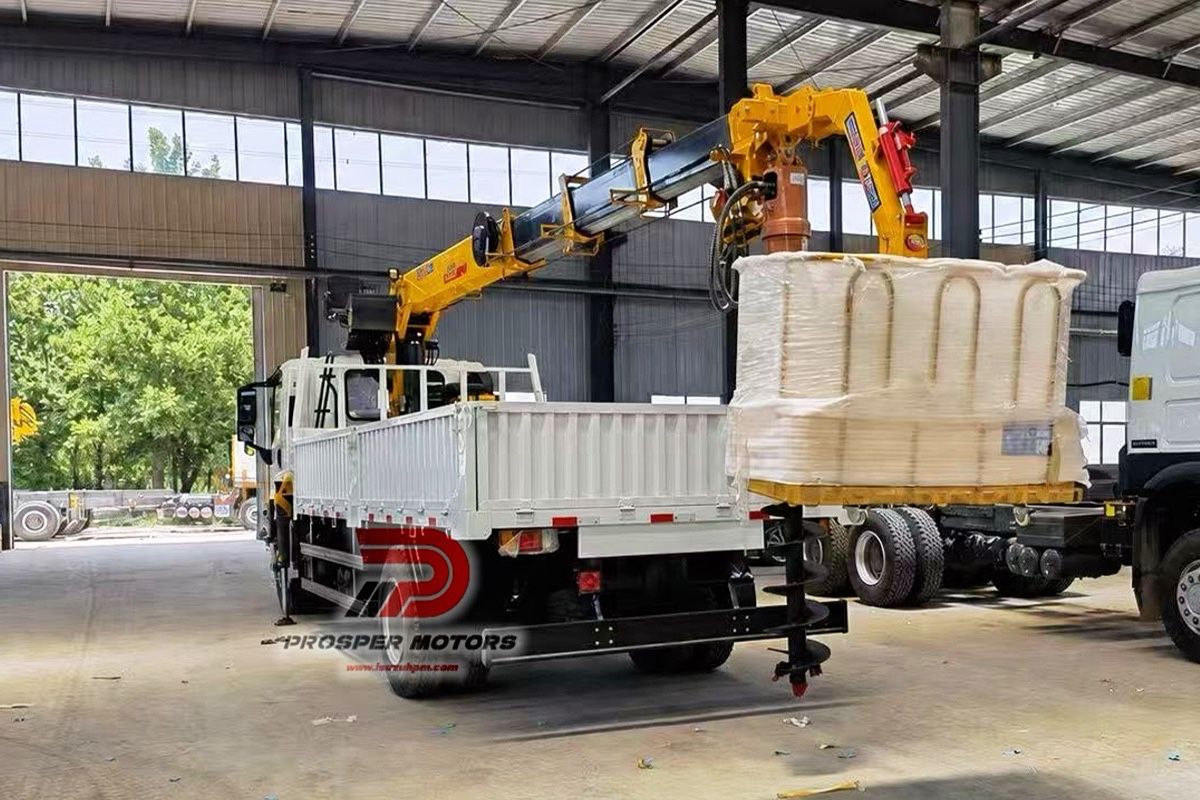

●FTR 4X2 High Performance Truck Crane Auger Drill
This robust auger drill attachment is perfectly matched for our boom truck crane. Built with thickened high-strength spiral blades, it delivers powerful torque to drill deep holes for utility poles efficiently.Wear-resistant drill bits prolong service life under rocky and hard soil conditions. Fast connection design allows quick mounting and removal, supporting flexible pole installation tasks in power and telecom construction. -
●FRR 4X2 boom lift crane truck outriggers
The heavy-duty hydraulic outriggers are core safety components of this truck mounted crane.Fully extended legs expand the supporting area to boost stability during lifting and drilling work. Built with thick steel structures, they resist deformation under heavy loads.Independent hydraulic control enables flexible adjustment on uneven ground. This reliable design greatly improves operation safety for your utility service truck at outdoor construction sites.
ISUZU QINGLING FTR 4X2 TRUCK MOUNTED CRANE WITH AUGER Specifications
Cab seats
2
Drive type
4X2
Engine Make
ISUZU
Wheelbase
5550mm
Engine Model
4HK1
Front Axle
6,300kg
Egnine
205 HP
Rear Axle
13,000kg
Displacement
5.2L
Transmission
MLD 6 Forward & 1 reverse
Emission Standard
Euro 3-Euro 6
Number of Tire
6+1
Tire Size
295/80R22.5
Max.lifting weight(T)
6.3
Parameter
Crane brand ：XCMG
Crane model ：SQ6.3SK2Q
Max lifting capacity( kg) ：6300 KG
Rated lifting torque ：157kNm
Rotation angle：360°, all rotation
Arm length ：2.5-8.5m
Hydraulic system maximum flow (L/min ) ：40L/min
Hydraulic system rated pressure ：20Mpa
Max lifting height ：8.5m
Rotary drilling diameter ：14 inch
Drilling depth ：8 FT
Our customer case show
Related Products
ISUZU ELF FRR 4X2 5T FOLIDING CRANE BOOM TRUCK WITH GRIPPER
Model
FRR
Drive Type
4x2(6 Wheels)
Engine
190hp
Max. lifting Weight
5tons
ISUZU NPS 4X4 5T STARGHT ARM BOOM CRANE TRUCK
Model
NPS
Drive Type
4X4(6 Wheels)
Engine
190/205 HP
Max. lifting Weight
5tons
ISUZU FVR 4X2 8T STARGHT ARM BOOM CRANE TRUCK
Model
FVR
Drive Type
4X2(6 Wheels)
Engine
240/300/325 HP
Max. lifting Weight
8tons
ISUZU FVZ 6X4 10T STARGHT ARM BOOM CRANE TRUCK
Model
FVZ
Drive Type
6X4(10 Wheels)
Engine
300hp
Max. lifting Weight
10tons
ISUZU GIGA FVR 4X2 10T Knuckle Boom Crane truck
Model
GIGA FVR 5X
Drive Type
4X2(6 Wheels)
Engine
240hp
Max. lifting Weight
10tons
ISUZU ELF NPR 4X2 3.2T STRAIGHT BOOM CRANE TRUCK WITH BUCKET
Model
NPR
Drive Type
4x2(6 Wheels)
Engine
130hp
Max. lifting Weight
3.2tons
Our most popular questions
-
What are the main types of boom crane and which brands are prominent?
You can typically choose between Straight Boom and Folding Boom (Knuckle Boom) cranes - Major brands include leading Chinese brand like XCMG and SANY Palfinger as well as international brand such as Palfinger and Fassi Crane and so on. -
What additional configurations or attachments can be added to the crane?
Beyond basic hooks, these cranes can be fitted with various auxiliary tools and attachments. This includes different types of grapples for handling materials like bricks, and even augers for drilling holes. -
What styles of cargo bodies are available?
The cargo body can be customized to your needs. Common styles include flatbed, stake body, and self-dumping body , allow for further customization based on customer drawings or specific requirements. -
Can a work basket (man basket) be installed on the crane?
Yes, the crane can be equipped with a work basket to facilitate aerial work ,It's crucial to follow all safety regulations for such operations, which may require operator training and certification to ensure safe use. -
Which truck chassis are suitable for a truck-mounted crane?
Popular chassis choices include 4X2,6X4, 8X4. For rough terrain, you can opt for all-wheel-drive models with configurations like 4x4, 6x6, or 8x8 for better traction and stability. -
What are the options for the crane operator's station?
The crane can be operated from different positions. Standard options include Ground operation and Top operation . For enhanced convenience and safety, a full-function wireless remote control can be optionally installed, allowing the operator to position themselves for the best view of the load.
