Home > Products > SEMI TRAILERS > FLATBED CARGO SEMI TRAILERS > Three-axle heavy-duty flatbed cargo semi trailer with protective tailgate

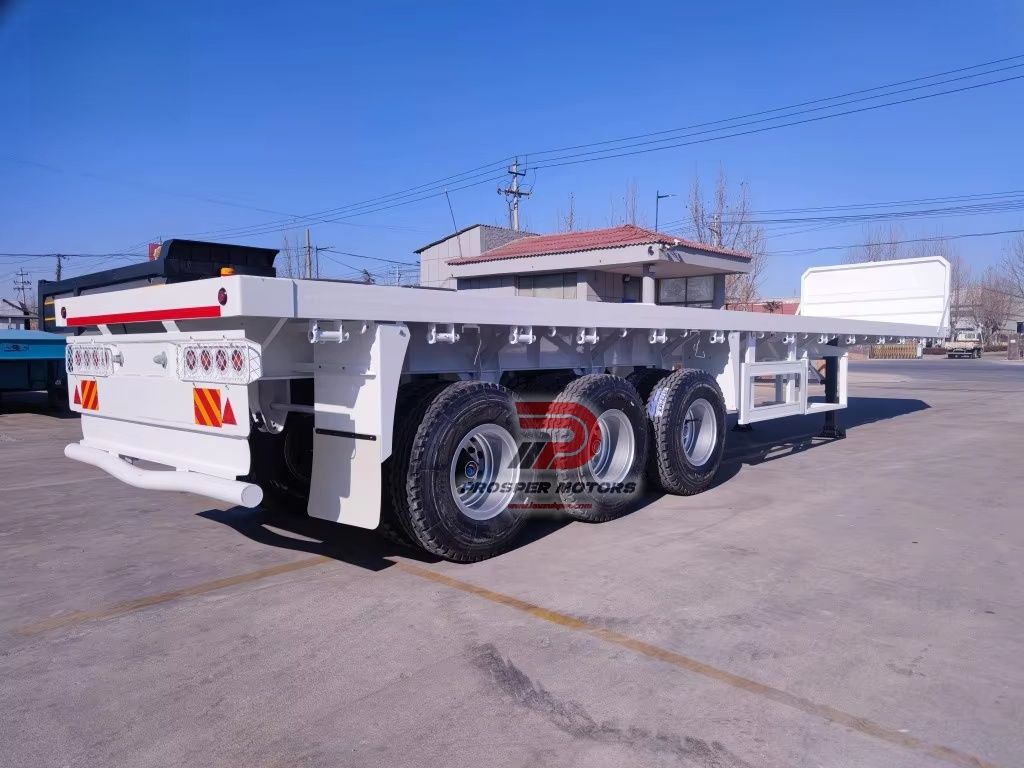

Three-axle heavy-duty flatbed cargo semi trailer with protective tailgate
This Flatbed Semi Trailer for container transport stands out with competitive strengths: lightweight reinforced beam structure and reliable all-weather driving safety, perfectly meeting global freight companies’ demands for efficient container and bulk cargo transportation. Equipped with a thickened front protective headboard, it effectively blocks forward cargo impact during long-distance haulage. Multiple container twist locks and lashing anchor points are pre-installed on the flat platform, while standard LED taillights and reflective warning signs ensure road compliance for both highway and port transport.
GVW(kg)
49000
Payload(kg)
40000
Axles
3
Tire type
12R22.5
SHARE :
TECHNICAL ADVANTAGE
Built for harsh long-haul transportation tasks, this 3 axles Semi Trailer delivers stable load dispersion and excellent heavy-load resistance. Three heavy-duty brand axles cooperate with balanced mechanical suspension to evenly distribute the total payload, avoiding uneven tyre wear and reducing frequent maintenance costs. Equipped with deep-groove heavy-duty tyres and a standard ABS braking system, it maintains stable braking performance on mountain roads, construction sites and wet pavements, greatly extending the service life of your transport fleet.
Our Heavy duty Flatbed Semi Trailer covers a wide range of practical transport scenarios, including port container turnover, steel and building material delivery, large engineering equipment transportation and palletized general cargo logistics. which can perfectly match most mainstream tractor units from global brands. The robust mechanical dual landing legs provide stable support during vehicle docking, loading and temporary parking, helping you improve transport efficiency and maximize business profits.
-

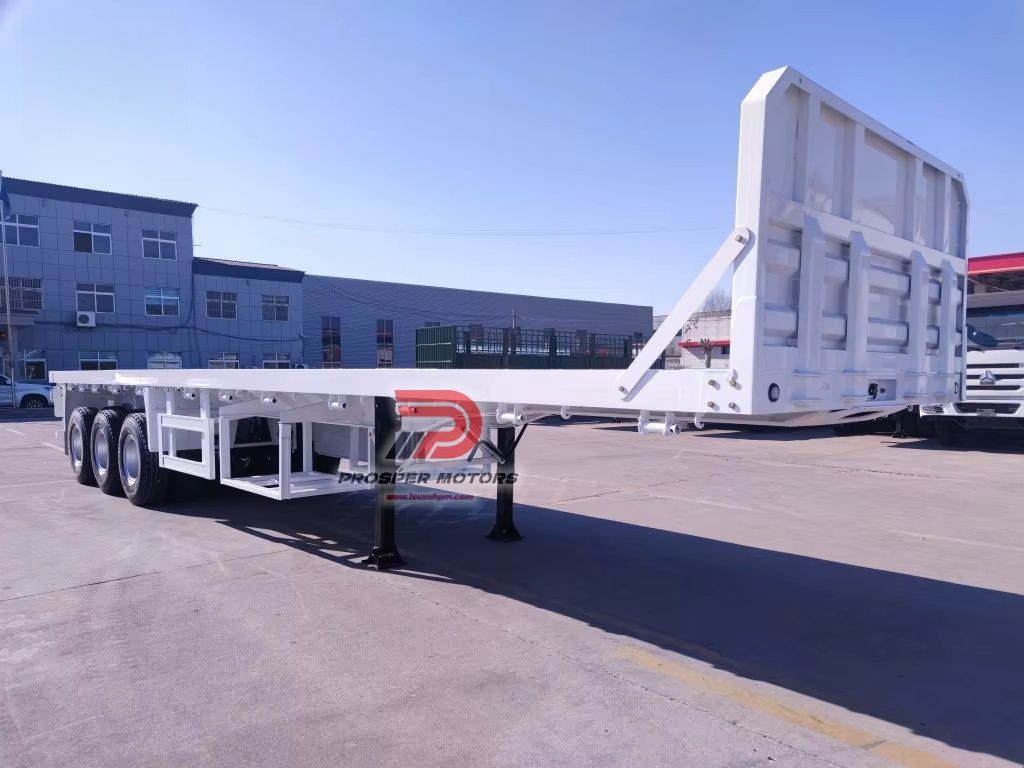

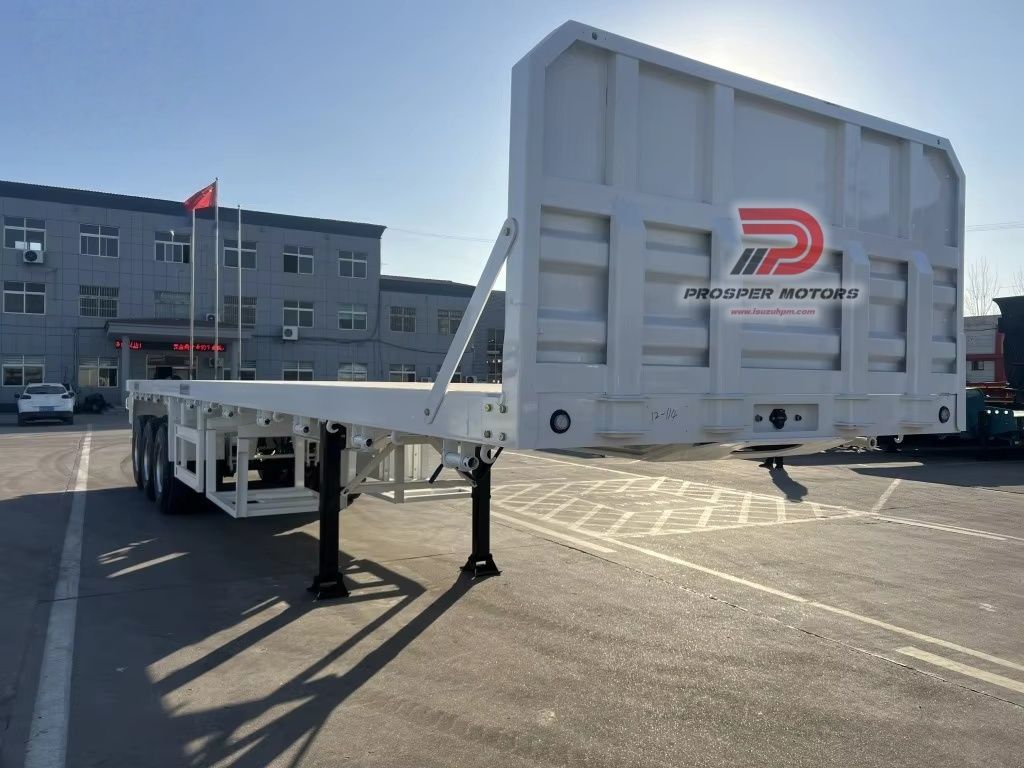

Reinforced Front Protective Baffle
Structural Features This front baffle adopts integrated stamping forming design with multiple reinforced ribs to boost structural rigidity. It is connected to the trailer frame via high-strength bolts for easy disassembly. The surface is treated with anti-corrosion paint, featuring strong wear and rust resistance to adapt to various harsh transportation environments.Main Functions It prevents cargo like steel and containers from sliding forward and hitting the tractor head during emergency braking, greatly improving driving safety. It also standardizes the front loading position of goods. When transporting extra-long cargo, the baffle can be removed flexibly to expand loading applicability. -

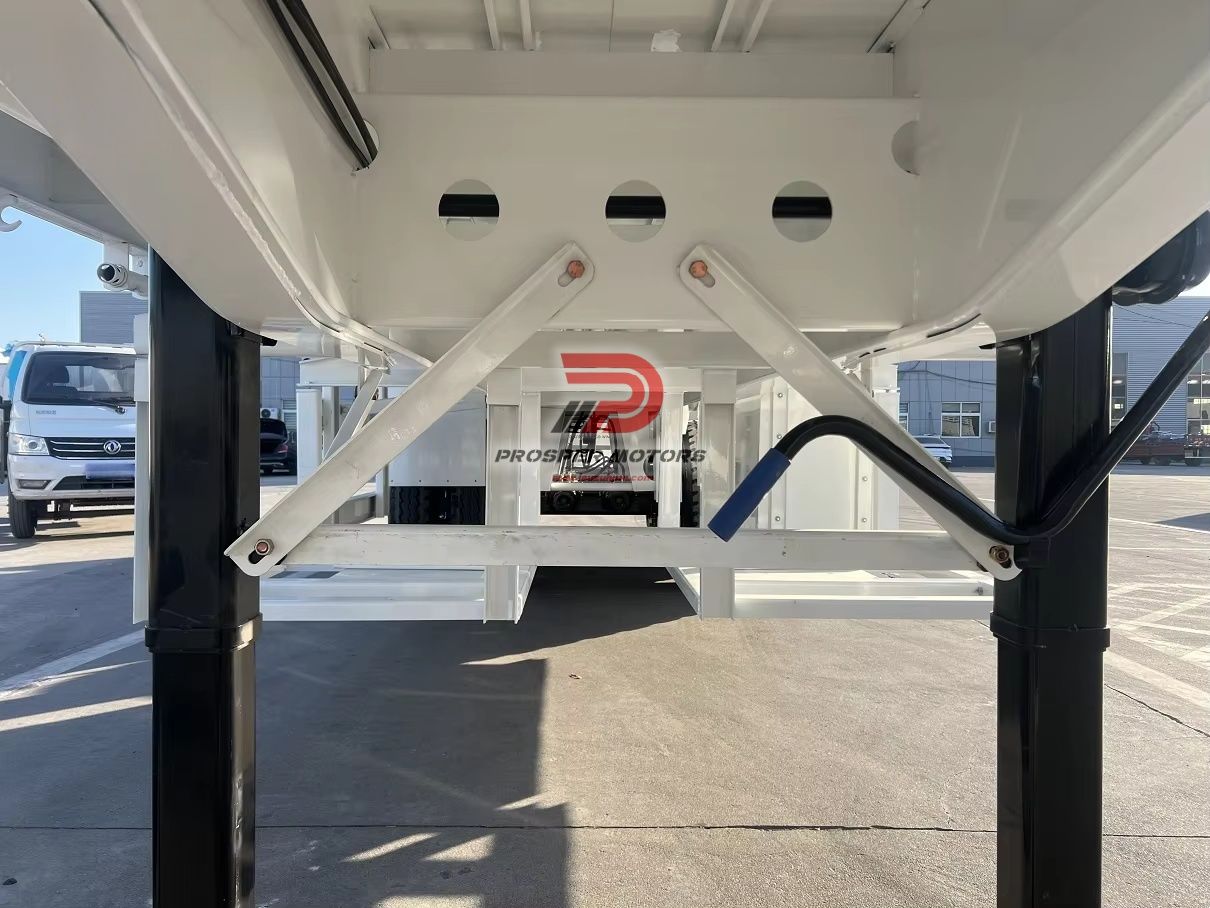

Reinforced Undercarriage Support
Structural Composition This is the undercarriage reinforced support structure matched with mechanical landing legs of the flatbed semi trailer. It adopts triangular bracing design with high-strength steel brackets fixed by anti-loosening bolts. Round lightening holes are reserved on the main beam to reduce dead weight while guaranteeing overall torsion resistance.Core Functions The triangular frame disperses vertical and lateral pressure effectively during parking and loading, preventing beam deformation. The heavy-duty landing legs provide stable support when decoupling the tractor, avoiding trailer tilting and ensuring safe loading, unloading and vehicle connection operations.

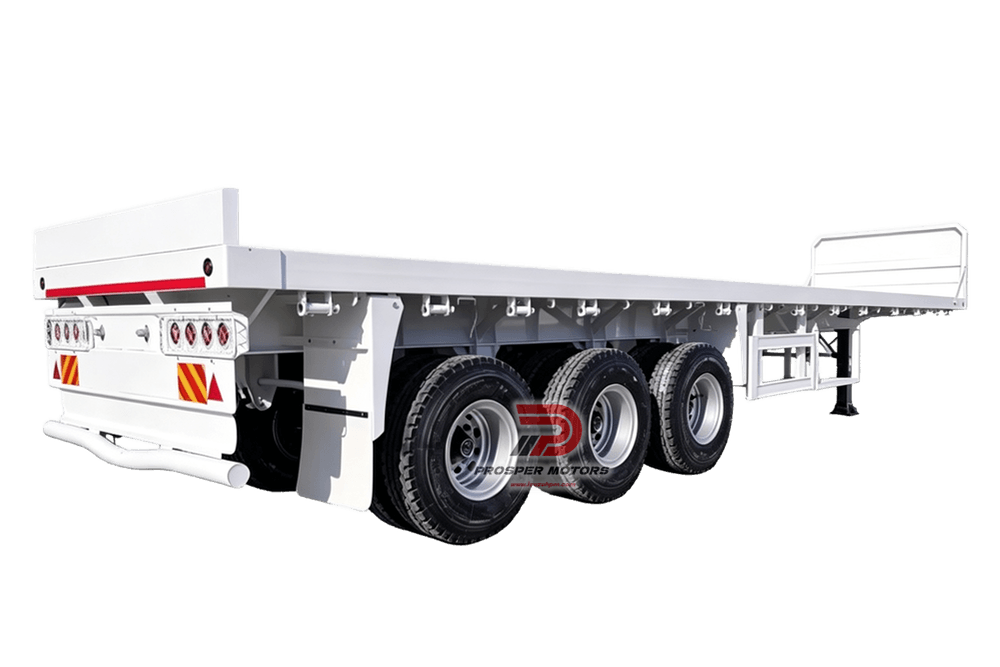

Three-axle heavy-duty flatbed cargo semi trailer with protective tailgate Specifications
Axles
3
Axle Load Capacity
13 Ton /per
Kingpin
50#
Suspension
Mechanical Suspension
Landing Gear
28T
Overall size
12500X2500X1550mm
Number of Tire
12+1
Tire type
12R22.5
Our advantages
●High-Strength Frame Structure
Thickened main beam design + triangular bracing reinforcement provide strong load-bearing capacity, resistance to torsion and deformation, and high stability during long-distance heavy-load transportation.
●Thickened Protective Tailgate
The rear features a stamped reinforced cargo baffle to effectively prevent cargo slippage. The reinforced body is impact-resistant and wear-resistant, suitable for transporting containers, steel, equipment, and other goods.

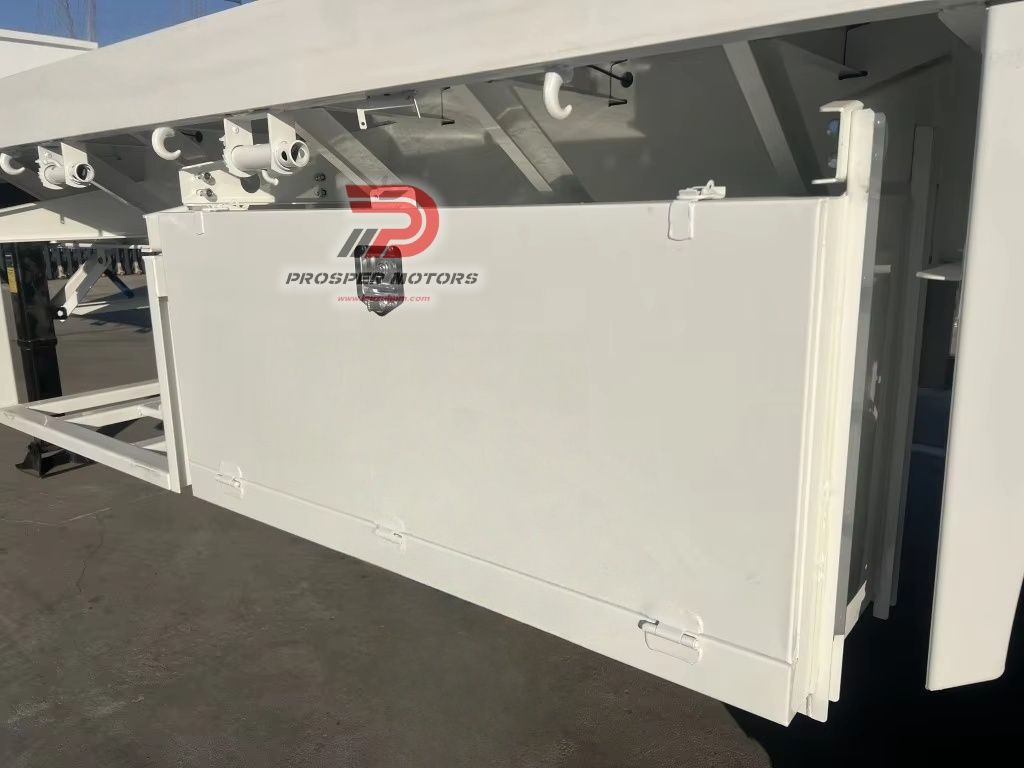

●Practical Toolbox
A side-sealed anti-theft toolbox stores repair tools and strapping accessories. Multiple hooks facilitate cargo securing, enhancing transportation safety and convenience.
